KSB Pumps help in the transport and cleaning of waste water. Sewage Treatment Processes use dry - Installed and wet-Installed pumps, as well as Mixers.

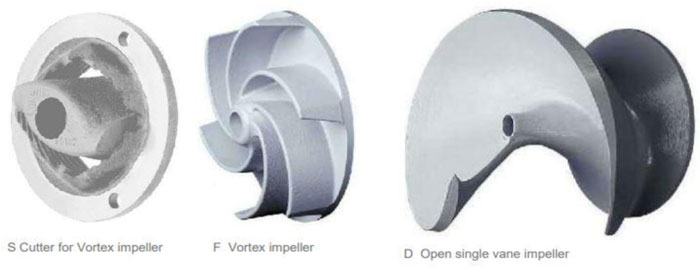

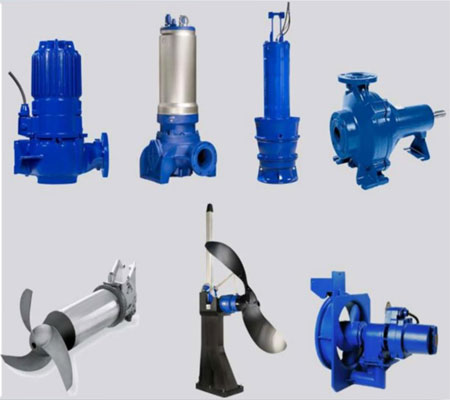

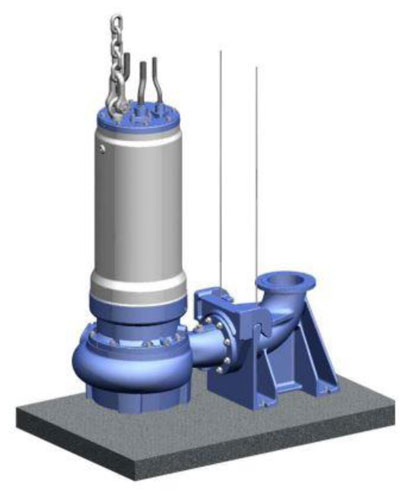

Submersible pumps for municipal and industrial applications, 5 different types of impeller (non clogging (K); Single vane (E/D); Vortex (F); Grinder (S), Flameproof PTB and FM/CSA certified, Cast iron / HC White iron / Duplex stainless steel
| FLOW RATE Q | to 2800 l/s / 45.000 gpm |
|---|---|
| PUMPING HEAD H | to 120 m / 400 fts. |
| Discharge nozzle diameter | to 700 mm / 28" |
| Motor power P | to 850 kW / 1.140 Hp |
| Medium temperature t | to 60 'C / 140'F |
A wide range of material combination opens the doors for waste water application above of the normal municipality requirements
Suitable for the transportation of all types of waste water in: waste water treatment and industrial applications, especially well suited for the handling of untreated waste water containing long-fibrous matter and solid materials, fluids containing air and gaseous substances and Untreated, activated sludge and sewage

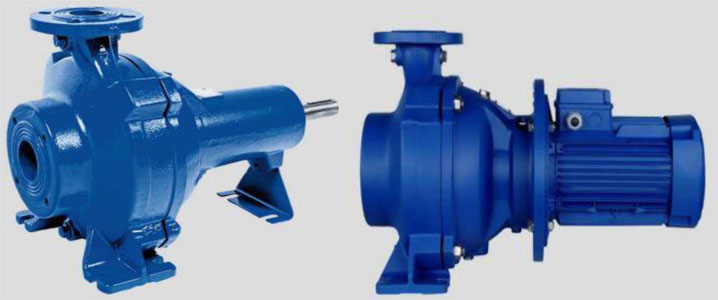

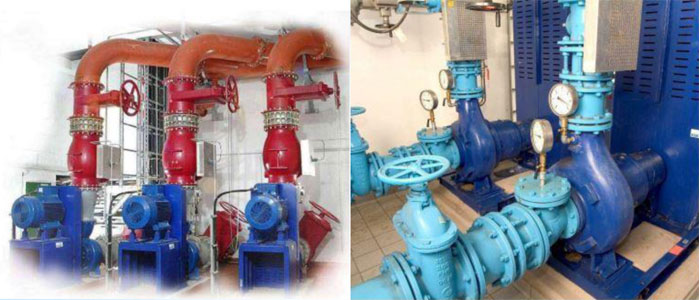

Dry installed, horizontally or vertically mounted volute casing pump for the handling of untreated, solids containing fluids.

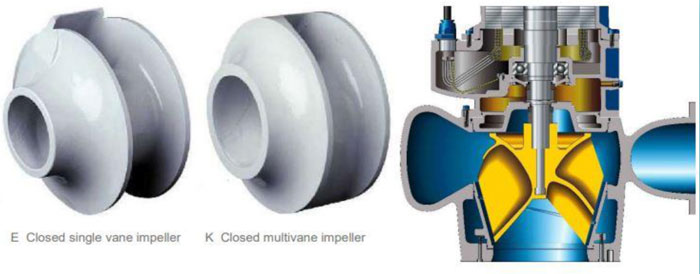

Available with closed single-vane (E), free-flow (F) or multi-vane (K) impeller; in process or block unit Design.
For the handling of untreated sewage and all types of waste water in sewage treatment plants and industry.

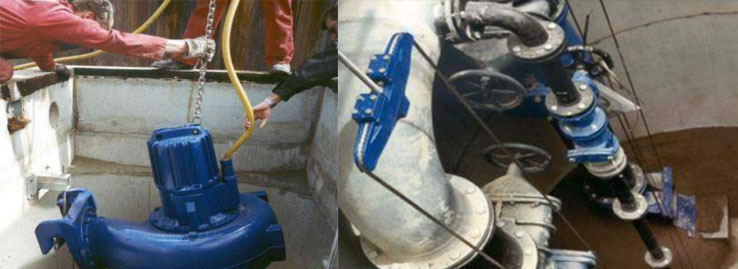

Untreated waste water, storm water and slurry in municipal and industrial applications.
